WireCrafters - Colocation and Data Center Secure Server Cage Specifications

Strong and Secure Server Cages

Server Cages are constructed of wire mesh partition panels made from 10 gauge wire, woven into a 2" x 1" rectangular mesh design. This wire mesh is then framed in a 1 1/4" x 1 1/4" x 1/8" hot rolled angle frame. Depending on the size of the wire partition panels, we also weld a flat stiffener bar to the wire mesh and angle frame.

The wire mesh panels then bolt directly to a 2" square, 14 gauge steel tube post with 3/8" hardware - which allows for the strongest server cages in the industry. The posts have a welded base plate, and we provide floor anchors to ensure a strong rigid wire partition system. WireCrafters Style 840 posts can be used in conjunction with an extra base plate which allows them to sandwich data center floors, creating a strong secure connection that will not damage the floor or be able to be removed without the proper tools.

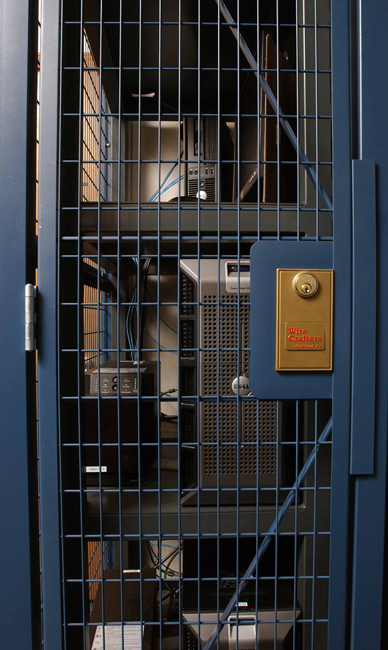

WireCrafters designs our Server Cage system with all of the hardware on the inside of the enclosure. With hardware only accessible from the inside of the secured area, security is guaranteed. Ceilings are also available as an option to further increase the security of your server cage system.

Clean & Easy Installation

WireCrafters Server Cage partition panels easily bolt together and are shipped already sized. No cutting or grinding is required, so there is no worry about debris infiltrating the air during server cage installation in an operating facility. All necessary hardware is included with your order.

The modular system allows you to expand the server cages as your needs grow.

Beyond the Standard Server Cage

WireCrafters has a wide array of options for your Server Cage. Our standard hinged and sliding doors are available, however we also offer vertical rise doors, motorized sliding doors, and double-hinged doors. These doors can be equipped with a basic key lock, or for more security, we also offer self-closing doors, keypad locks, card readers, finger print scanners, and even emergency exit push bars to name a few. WireCrafters offers eight different powder coat colors in house, but can also match any color with a paint chip or RAL number.

Features:

• Twenty standard sized panels 4'-0" or 5'-0" high, by 1'-0" to 10'-0" wide.
• Stack two or more panels between posts to reach wall height.
• Standard size panels work in ceilings and walls.
• Custom size panels and special heights available.
• Hinged, double hinged, sliding, and vertical rise doors available.
• Sliding doors have patented tamper resistant latch mechanism.
• Angle frame design gives installer clear access to hardware, speeding installation.
• Assembly hardware is inaccessible from the secured side of the partition.
• Standard 3/8" mounting hardware is the heaviest in the industry.
• Heavy duty options available.
• Panels may be ordered with any mesh, expanded metal, sheet metal, or clear Lexan.
